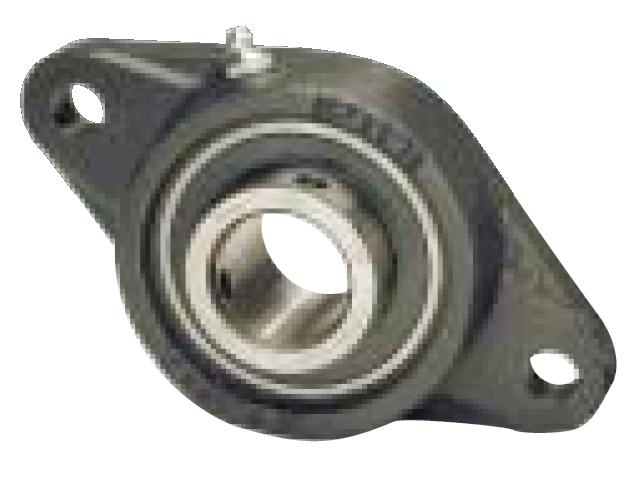

Medium duty with set screw lock.

Wide inner race with greater load carrying capacity than standard duty
Cast iron housing
B-type seals
L3-type seals available in some sizes

1 - 23 of 23 | Results Per Page | View | Unit of Measure

Request Information Compare Items

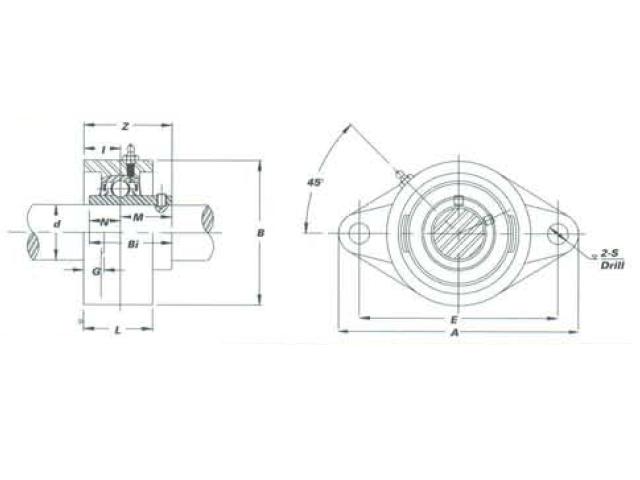

Item #	d - Shaft Dia.	A - Dimension	E - Dimension	I - Dimension	G - Dimension	L - Dimension

UCFLX 05 14	N/A 0.875 in	N/A 5 13/16 in148 mm	N/A 4 19/32 in116.7 mm	N/A 45/64 in18 mm	N/A 0.5 in13 mm	N/A 1 7/32 in31 mm
UCFLX 05 15	N/A 0.9375 in	N/A 5 13/16 in148 mm	N/A 4 19/32 in116.7 mm	N/A 45/64 in18 mm	N/A 0.5 in13 mm	N/A 1 7/32 in31 mm
UCFLX 05 25MM	N/A 25 mm	N/A 5 13/16 in148 mm	N/A 4 19/32 in116.7 mm	N/A 45/64 in18 mm	N/A 0.5 in13 mm	N/A 1 7/32 in31 mm
UCFLX 05 16	N/A 1 in	N/A 5 13/16 in148 mm	N/A 4 19/32 in116.7 mm	N/A 45/64 in18 mm	N/A 0.5 in13 mm	N/A 1 7/32 in31 mm
UCFLX 06 18	N/A 1.125 in	N/A 6 11/32 in161 mm	N/A 5 1/8 in130.2 mm	N/A 3/4 in19 mm	N/A 9/16 in14 mm	N/A 1 11/32 in34 mm
UCFLX 06 30MM	N/A 30 mm	N/A 6 11/32 in161 mm	N/A 5 1/8 in130.2 mm	N/A 3/4 in19 mm	N/A 9/16 in14 mm	N/A 1 11/32 in34 mm
UCFLX 06 19	N/A 1.1875 in	N/A 6 11/32 in161 mm	N/A 5 1/8 in130.2 mm	N/A 3/4 in19 mm	N/A 9/16 in14 mm	N/A 1 11/32 in34 mm
UCFLX 06 20	N/A 1.25 in	N/A 6 11/32 in161 mm	N/A 5 1/8 in130.2 mm	N/A 3/4 in19 mm	N/A 9/16 in14 mm	N/A 1 11/32 in34 mm
UCFLX 07 22	N/A 1.375 in	N/A 6 7/8 in175 mm	N/A 5 21/32 in143.7 mm	N/A 53/64 in21 mm	N/A 9/16 in14 mm	N/A 1 13/32 in36 mm
UCFLX 07 35MM	N/A 35 mm	N/A 6 7/8 in175 mm	N/A 5 21/32 in143.7 mm	N/A 53/64 in21 mm	N/A 9/16 in14 mm	N/A 1 13/32 in36 mm
UCFLX 07 23	N/A 1.4375 in	N/A 6 7/8 in175 mm	N/A 5 21/32 in143.7 mm	N/A 53/64 in21 mm	N/A 9/16 in14 mm	N/A 1 13/32 in36 mm
UCFLX 08 24	N/A 1.5 in	N/A 7 13/32 in188 mm	N/A 5 27/32 in148.4 mm	N/A 55/64 in22 mm	N/A 19/32 in15 mm	N/A 1 1/2 in38 mm
UCFLX 08 40 MM	N/A 40 mm	N/A 7 13/32 in188 mm	N/A 5 27/32 in148.4 mm	N/A 55/64 in22 mm	N/A 19/32 in15 mm	N/A 1 1/2 in38 mm
UCFLX 09 27	N/A 1.6875 in	N/A 7 3/4 in197 mm	N/A 6 3/16 in157 mm	N/A 55/64 in22 mm	N/A 19/32 in15 mm	N/A 1 9/16 in40 mm
UCFLX 09 28	N/A 1.75 in	N/A 7 3/4 in197 mm	N/A 6 3/16 in157 mm	N/A 55/64 in22 mm	N/A 19/32 in15 mm	N/A 1 9/16 in40 mm
UCFLX 09 45MM	N/A 45 mm	N/A 7 3/4 in197 mm	N/A 6 3/16 in157 mm	N/A 55/64 in22 mm	N/A 19/32 in15 mm	N/A 1 9/16 in40 mm
UCFLX 10 30	N/A 1.875 in	N/A 8 13/16 in224 mm	N/A 7 1/4 in184 mm	N/A 63/64 in25 mm	N/A 23/32 in18 mm	N/A 1 11/16 in43 mm
UCFLX 10 31	N/A 1.9375 in	N/A 8 13/16 in224 mm	N/A 7 1/4 in184 mm	N/A 63/64 in25 mm	N/A 23/32 in18 mm	N/A 1 11/16 in43 mm
UCFLX 10 50MM	N/A 50 mm	N/A 8 13/16 in224 mm	N/A 7 1/4 in184 mm	N/A 63/64 in25 mm	N/A 23/32 in18 mm	N/A 1 11/16 in43 mm
UCFLX 10 32	N/A 2 in	N/A 8 13/16 in224 mm	N/A 7 1/4 in184 mm	N/A 63/64 in25 mm	N/A 23/32 in18 mm	N/A 1 11/16 in43 mm
UCFLX 11 55MM	N/A 55 mm	N/A 9 27/32 in250 mm	N/A 7 15/16 in201.6 mm	N/A 1 9/64 in29 mm	N/A 23/32 in18 mm	N/A 1 7/8 in48 mm
UCFLX 11 35	N/A 2.1875 in	N/A 9 27/32 in250 mm	N/A 7 15/16 in201.6 mm	N/A 1 9/64 in29 mm	N/A 23/32 in18 mm	N/A 1 7/8 in48 mm
UCFLX 11 36	N/A 2.25 in	N/A 9 27/32 in250 mm	N/A 7 15/16 in201.6 mm	N/A 1 9/64 in29 mm	N/A 23/32 in18 mm	N/A 1 7/8 in48 mm
